Description

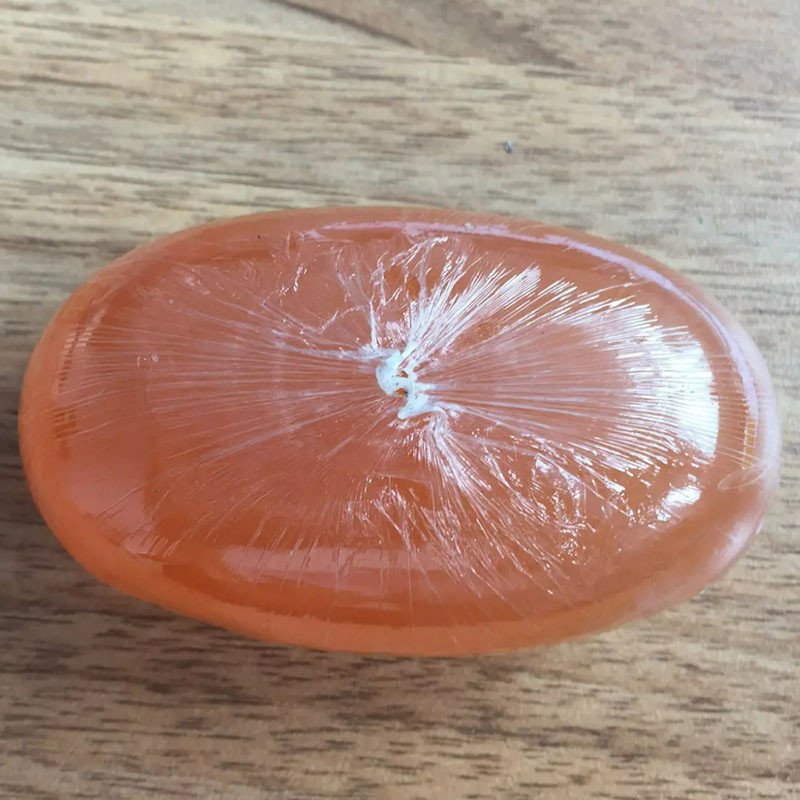

This stretch film wrapper is also called cling film wrapper or PE film packing machine. It is specially designed for wrapping handmade soaps, candles or other similar products. It can be used for different shapes, like round, square, shell-shaped, petal-shaped, heart-shaped soap and other shapes, no need to change molds while the sizes are not of too big differences.
It is of pneumatic cylinder drive type, PLC and HMI control, easy for operation.

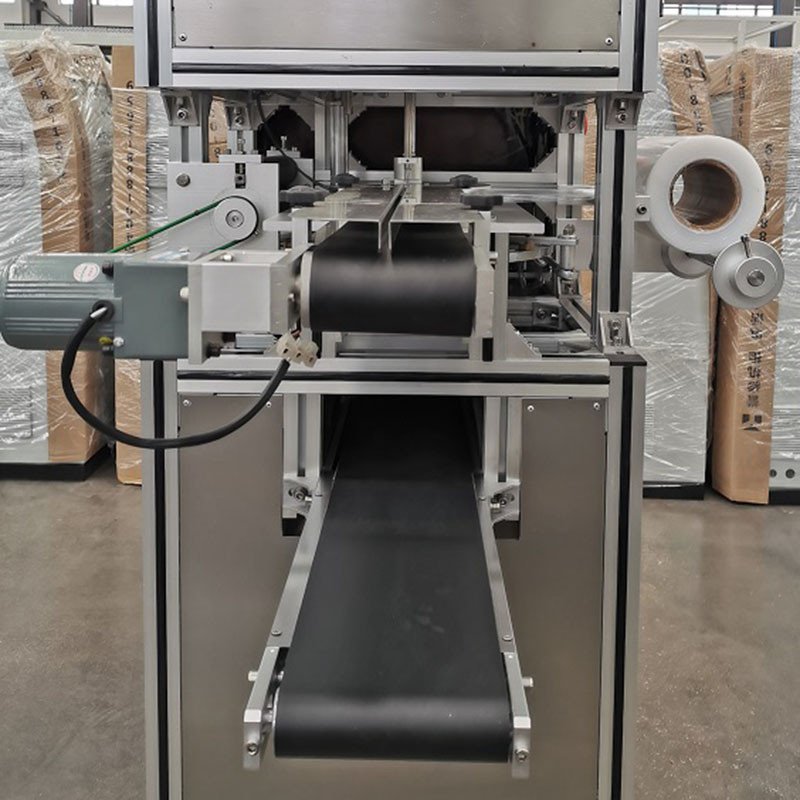

A feeding conveyor is included, operator can feed the soaps or candles continuously.

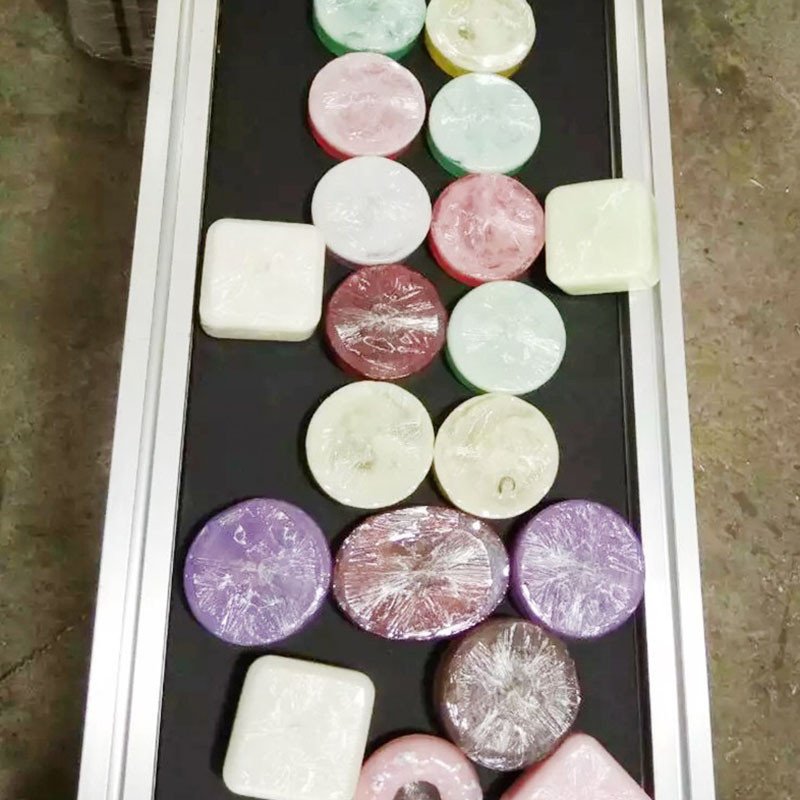

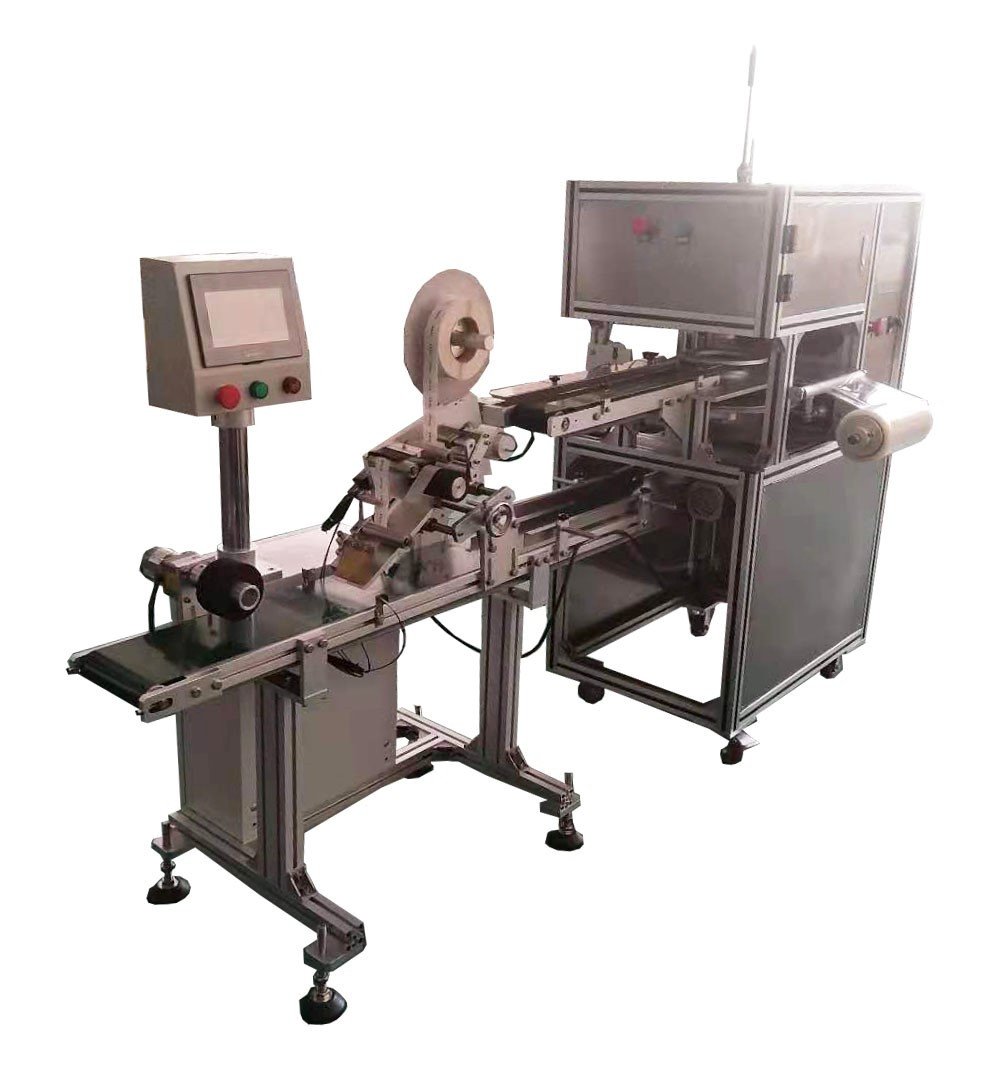

A discharge conveyor is included for discharging finished products out, which can be connected with a labelling machine for label sticking.
Technical parameters
Packing speed 15-20 pieces/min
Handmade soap size 30≤Φ≤75 mm
Soap Thickness (height) ≤40mm
OD of PE Film Core ≤Φ200mm
PE film width ≤260mm
ID of PE film core ≤Φ75mm
Film thickness 0.02mm
Motor 110w
Compressed air 0.5~0.7Mpa
Dimensions(mm) 1000x960x1600mm
Weight: 150Kg
